Product Summary

The 10034908-001LF is a Standard directly into connector.

Parametrics

10034908-001LF absolute maximum ratings: (1)Current rating: 7 A; (2)Temperature range: -5℃ to + 105℃; (3)Rated voltage: 1,000VAC.

Features

10034908-001LF features: (1)Manufacturer: FCI; (2)Products: standard directly into connector; (3)Series: Power Edge Card; (4)Products: Receptacles; (5)Position number/contact points: 38 Power; (6)Put in a supporting role: Vertical; (7)Installation style: Straddle Mount.

Diagrams

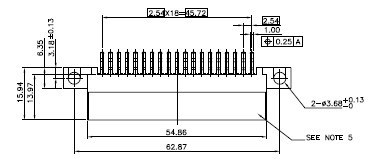

10034908-001LF block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

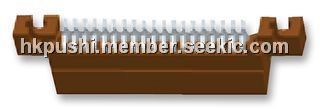

10034908-001LF
10034908-001LF
FCI
Standard Card Edge Connectors 2.54 STRAD MNT RECPT 2 ROW 38 CON
Data Sheet
0-1: $3.50
1-25: $2.83
25-100: $2.66
100-250: $2.64
