Product Summary

The 154719 is a Positive Lock Connector.

Parametrics

154719 absolute maximum ratings: (1)Product Type = Accessory; (2)Accessory Type = Insulation Sleeve; (3)Mating Area Interface Dimensions (mm [in]) = 6.35 [.250]; (4)Receptacle Style = Straight; (5)Color = Black; (6)Material = Nylon; (7)Keyed = No; (8)Number of Positions = 1; (9)Position Keyed = None; (10)UL Flammability Rating = UL 94V-2.

Features

154719 features: (1)Accessory; (2)Not Preloaded; (3)Connector Style = Plug; (4)Accepts Contact Gender = Receptacle; (5)Accessory Type = Insulation Sleeve.

Diagrams

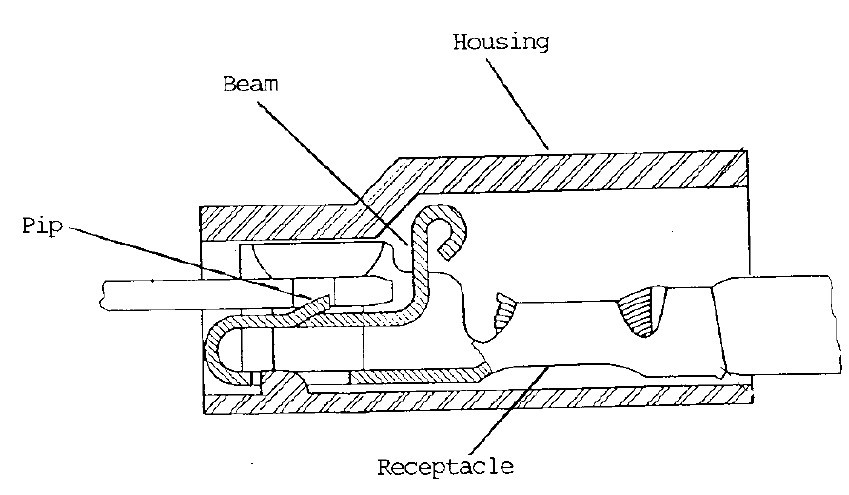

154719 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
154719-1
154719-1
TE Connectivity / AMP
Automotive Connectors BOOT INSULATOR
Data Sheet
0-1: $0.06
1-100: $0.05
100-500: $0.05
500-1000: $0.03
154719-2
154719-2
TE Connectivity / AMP
Automotive Connectors BOOT/INSULATOR F. POSLOK TERM
Data Sheet
0-1: $0.07
1-100: $0.06
100-500: $0.04
500-1000: $0.04
154719-4
154719-4

CONN RCPT HSG 1POS .250 YELLOW
Data Sheet
0-15000: $0.03
154719-5
154719-5
TE Connectivity / AMP
Automotive Connectors RCPT 1P STR .250
Data Sheet
0-12500: $0.02
154719-6
154719-6
TE Connectivity / AMP
Headers & Wire Housings POSITIVE LOCK HSG.
Data Sheet
0-11400: $0.03
154719-9
154719-9

CONN RCPT HSG 1POS .250 BROWN
Data Sheet
0-15000: $0.03
154719
154719
TE Connectivity / AMP
Headers & Wire Housings RECPT HSG 1P
Data Sheet
0-1: $0.06
1-50: $0.04
50-100: $0.04
100-500: $0.04
