Product Summary

The 180923 is a Multiple Circuit Housing with Tab & Receptacle.

Parametrics

180923 absolute maximum ratings: (1)Maximum operating voltage: 250V AC/DC; (2)Temperature rating: -30 to +105℃; (3)Current rating: 11 to 50A.

Features

180923 features: (1)Connector; (2)Not Preloaded; (3)Connector Style = Plug; (4)Accepts Contact Gender = Receptacle; (5)Number of Circuits = 2.

Diagrams

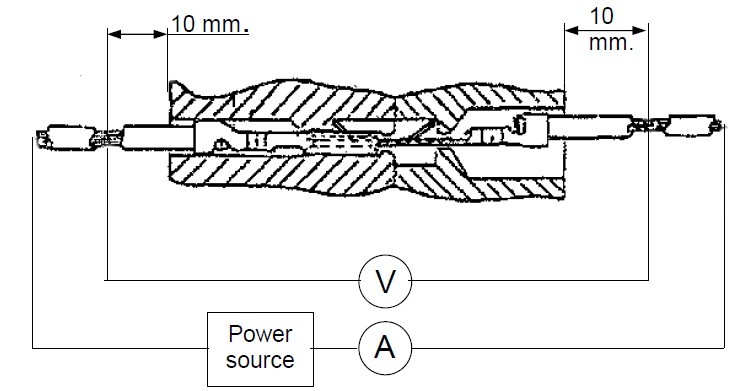

180923 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
180923
180923
TE Connectivity / AMP
Headers & Wire Housings .250 TAB HSG 2P
Data Sheet
0-1: $0.22
1-50: $0.19
50-100: $0.16
100-500: $0.15
180923-1
180923-1
TE Connectivity
Headers & Wire Housings 2 CIR F.F. RECEPT. HSG. RED
Data Sheet
0-1: $0.17
1-25: $0.16
25-50: $0.16
50-100: $0.14
1809238
1809238
Phoenix Contact
Pluggable Terminal Blocks MSTBA 2,5/ 18-G-5,08-LR
Data Sheet
0-1: $2.97
1-10: $2.70
10-50: $2.49
50-100: $2.31
