Product Summary
The 188746-1 is an AMPMODU Header.
Parametrics
188746-1 absolute maximum ratings: (1)Housings, flame retardant glass-filled PBT: UL94V0; flame retardant glass-filled high temperature polyamide 4-6: UL94; (2)Temperature: -40℃ to +100℃; (3)Voltage rating: 500V rms; (4)Current rating: 3A max; (5)Insulation resistance: 1,000MΩ min; (6)Vibrations: 10 Hz to 500 Hz.
Features
188746-1 features: (1)Contact; (2)Contact Type = Socket; (3)Crimp Termination Method to Wire/Cable, Insulation Displacement Crimp (IDC) Termination Method to Wire/Cable; (4)Applies To Wire/Cable; (5)Wire Insulation Diameter = .80 - 1.50 mm.

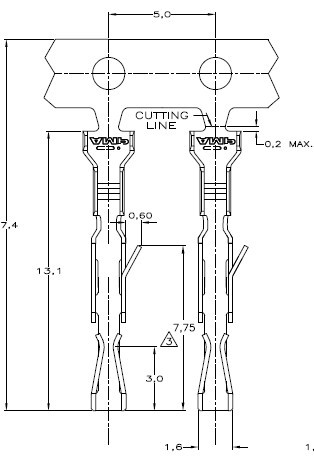

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 188746-1 |
TE Connectivity / AMP |
Headers & Wire Housings CONTACT REC HE13 COSI GOLD PLATED |
Data Sheet |
|
|
||||||||||||||||||
