Product Summary

The 1-104480-2 is an AMPMODU Header.

Parametrics

1-104480-2 absolute maximum ratings: (1)Contact - Rated Current: 3 A; (2)Voltage Rating: 300 VAC; (3)Termination Resistance: 12 MΩ; (4)Insulation Resistance: 5,000 MΩ; (5)Dielectric Withstanding Voltage: 750V; (6)Operating Temperature: -65 to +105℃.

Features

1-104480-2 features: (1)Contact; (2)Contact Type = Socket; (3)Crimp Termination Method to Wire/Cable; (4)Applies To Wire/Cable; (5)Wire Insulation Diameter = .64 - 1.52 mm.

Diagrams

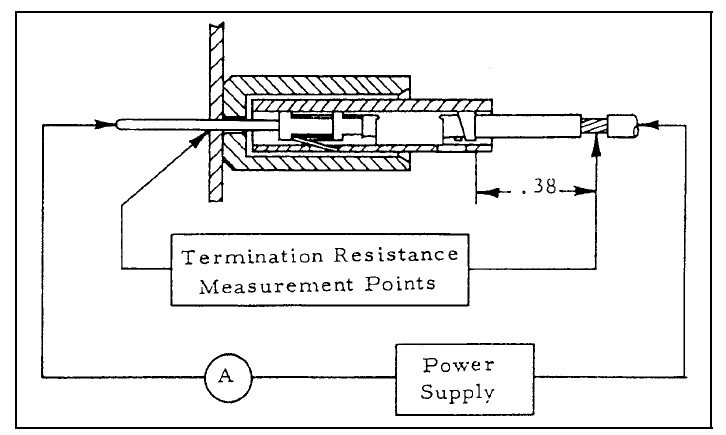

1-104480-2 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
1-104480-2
1-104480-2
TE Connectivity / AMP
Headers & Wire Housings SKT 26-22 CU/AU REEL
Data Sheet
0-1: $0.07
1-100: $0.06
100-500: $0.05
500-1000: $0.05
