Product Summary

The 1-1123722-2 is an Economy Power Connector. The applications of the 1-1123722-2 include Household appliances, Commercial & building equipment, HVAC & vending controls, Industrial machinery & equipment: generators, Coin changers/vending machines, Lighting.

Parametrics

1-1123722-2 absolute maximum ratings: (1)Contact - Rated Current (A): 7.5A; (2)Operating Voltage Reference: AC; (3)Operating Voltage (VAC): 250Vac.

Features

1-1123722-2 features: (1)Positive audible latch designed for easier mating & unmating; (2)Polarization tabs help prevent post misalignment; (3)Complete product offering with color coded housings; (4)End to end stackable; (5)Intermateable to similar competitive products for retrofit applications; (6)Broad portfolio includes .100, .156, .200 and .312 centerline families.

Diagrams

1-1123722-2 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

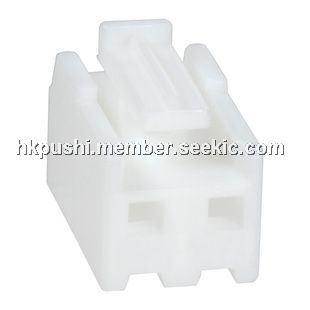

1-1123722-2
1-1123722-2
TE Connectivity / AMP
Power to the Board PLUG HOUSING 2P
Data Sheet
0-1: $0.10
1-10: $0.08
10-25: $0.08
25-50: $0.07
