Product Summary

The 1-487526-1 is a Flexible Film Connector.

Parametrics

1-487526-1 absolute maximum ratings: (1)Voltage: 300 volts AC rms; (2)Current: 2 A; (3)Temperature: -65℃ to 105℃.

Features

1-487526-1 features: (1)Connector; (2)Housing; (3)Connector Style = Receptacle; (4)Contact Type = Socket; (5)2.54 mm Centerline.

Diagrams

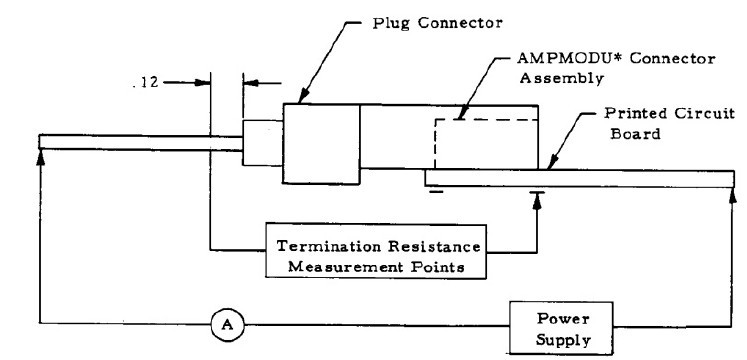

1-487526-1 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

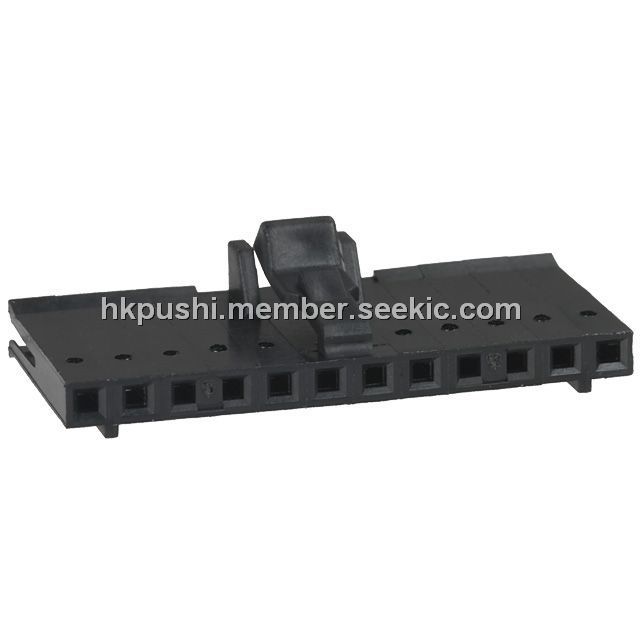

1-487526-1
1-487526-1
TE Connectivity / AMP
Board to Board / Mezzanine Connectors FFC HSG RCPT 12P
Data Sheet
0-1: $0.46
1-10: $0.39
10-100: $0.32
100-500: $0.26
