Product Summary
The 2-32056-1 is a Ring and Spade Tongue Terminal.
Parametrics
2-32056-1 absolute maximum ratings: (1)Voltage ratings: 300VAC; (2)Wire Range (mm [AWG]): 1.25-2.002 [16-14]; (3)Tongue Material Thickness (mm [in]): 0.84 [0.033].
Features
2-32056-1 features: (1)Terminal Shape = Spade Tongue; (2)Receptacle Style = Straight; (3)Body Style = PIDG; (4)Barrel Type = Closed Barrel; (5)Wire/Cable Type = Regular Wire.

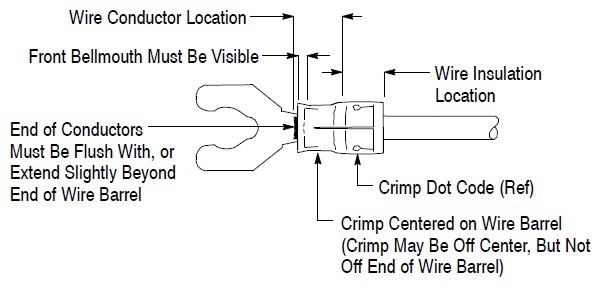

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 2-32056-1 |
TE Connectivity / AMP |
Terminals PIDG SPADE 16-14 5000 |
Data Sheet |
|
|
||||||||||||
