Product Summary

The 2-520183-2 is an Ultra-Fast Receptacle.

Parametrics

2-520183-2 absolute maximum ratings: (1)Voltage rating: 600V; (2)Operating temperature rating: 105℃ max.

Features

2-520183-2 features: (1)Terminal Type = Receptacle; (2)Proprietary Name = Ultra-Fast Plus; (3)Receptacle Style = Straight; (4)Mating Area Interface Dimensions = 6.35 x 0.81 mm; (5)Brass Material.

Diagrams

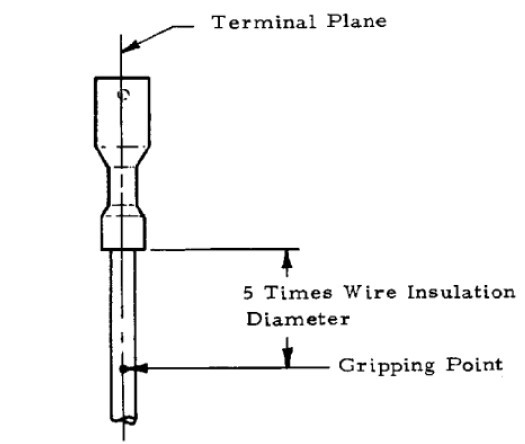

2-520183-2 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
2-520183-2
2-520183-2
TE Connectivity / AMP
Terminals RCPT 22-18 6.35x0.81
Data Sheet
0-1: $0.11
1-10: $0.11
10-100: $0.10
100-500: $0.08
