Product Summary

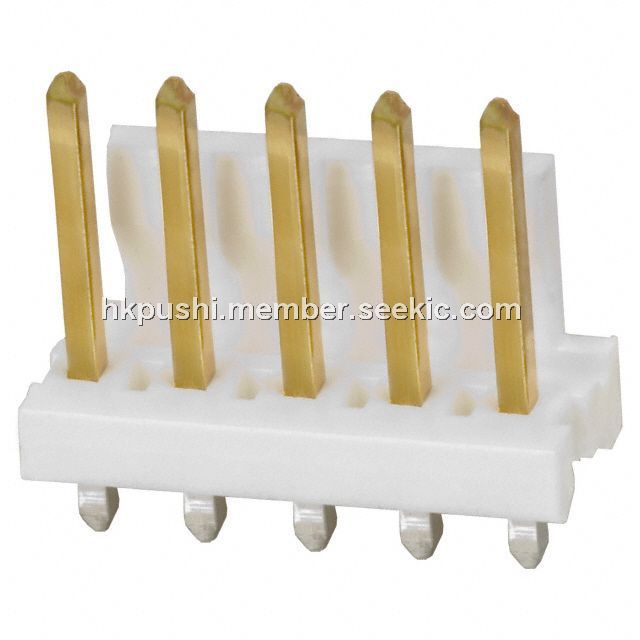

The 3-641208-5 is an AMP economy power (ep) connector.
Parametrics
3-641208-5 absolute maximum ratings: (1)Voltage Rating: 30 VAC; (2)Current Rating: 1 amp max.; (3)Low-Level Resistance: 30 milliohms; (4)Dielectric Withstanding Voltage: 500 VAC; (5)Insulation Resistance: 1,000 megohms; (6)Operating Temperature: -55℃ to +105℃ for connector only; cable rating may be lower.
Features
3-641208-5 features: (1)Header; (2)5 Positions; (3)Connector Style = Plug; (4)Contact Type = Pin; (5)MTA-156 Product Line.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 3-641208-5 |
TE Connectivity / AMP |
Headers & Wire Housings FRCTN LK HDR STR 5P Square post gold |
Data Sheet |
|
|
||||||||||||
