Product Summary

The 3-770476-1 is an AMP Economy Power (EP) Connector.

Parametrics

3-770476-1 absolute maximum ratings: (1)Voltage: 250 volts AC; (2)Temperature: -55 to 105℃; (3)Current: 11A.

Features

3-770476-1 features: (1)Contact Configuration = SL-156 Contacts; (2)Crimp Termination Method to Wire/Cable; (3)Bright Tin Contact Plating, Mating Area, Material; (4)Wire Size = 0.9-0.22 [18-24] mm2 [AWG]; (5)Used For SL-156 Housings.

Diagrams

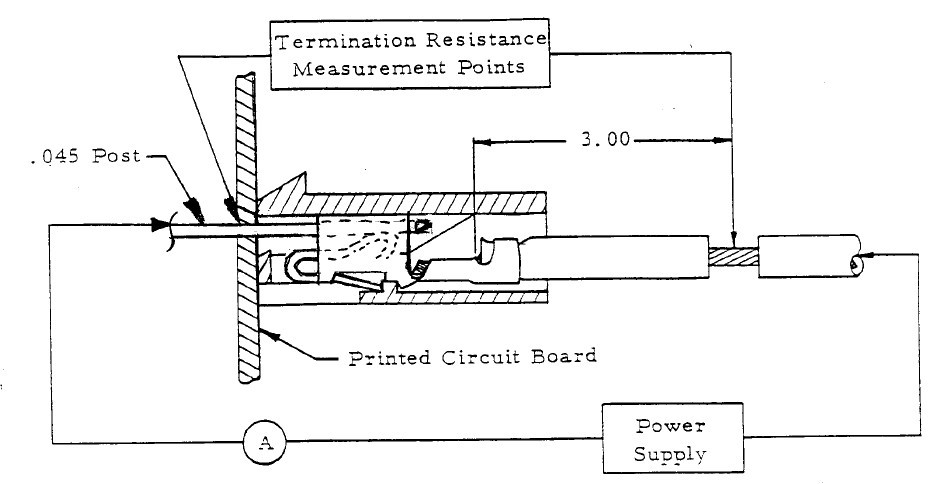

3-770476-1 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
3-770476-1
3-770476-1
TE Connectivity / AMP
Headers & Wire Housings SKT 24-18 PHBR/SN REEL
Data Sheet
0-1: $0.05
1-100: $0.04
100-500: $0.04
500-1000: $0.03
