Product Summary
The 3-928247-2 is a Standard Timer Connector.
Parametrics
3-928247-2 absolute maximum ratings: (1)Centerline: 5.0 mm; (2)Housing Material: Polyamide, PA 6.6 and PA 6; (3)Voltage rating: 250 V; (4)Current rating: 6A; (5)Air and Creepage Distance: >3.2 mm; (6)Flammability Rating: UL 94 V-2; (7)Approvals: VDE, UL.
Features
3-928247-2 features: (1)Direct Mating Connectors for PC Boards, 2–8 Positions, up to 6 A Current Carrying Capacity; (2)Indirect Mating Connectors, 1–8 Positions, up to 16 A Current Carrying Capacity; (3)Variable Keying; (4)Double Wire Termination possible.

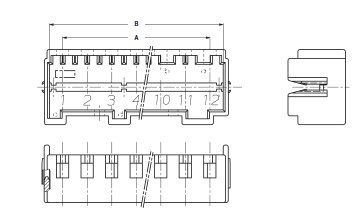

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 3-928247-2 |
TE Connectivity / AMP |
Automotive Connectors 2P ST-TIMER GEH |
Data Sheet |
|
|
||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||
|
3-928247-2 |
TE Connectivity / AMP |
Automotive Connectors 2P ST-TIMER GEH |
Data Sheet |
|
|
||||||
|
3-928247-5 |
TE Connectivity / AMP |
Automotive Connectors 5P ST-TIMER GEH |
Data Sheet |
|
|
||||||
|
3-928247-7 |
TE Connectivity |
Automotive Connectors 7P ST-TIMERHOUSING |
Data Sheet |
|
|
||||||
 |
3-928343-8 |
TE Connectivity |
Automotive Connectors STD-TIMER GEH 8P |
Data Sheet |
|
|
||||||
 |
3-928776-4 |
TE Connectivity / AMP |
Headers & Wire Housings MOD2 STIFT M A-PIN |
Data Sheet |
|
|
||||||
|
3-929080-1 |
TE Connectivity |
Automotive Connectors MQS BU-GEH 2P BL |
Data Sheet |
|
|
||||||
