Product Summary
The 40698 is a Ring and Spade Tongue Terminal.
Parametrics
40698 absolute maximum ratings: (1)Terminal Shape = Ring Tongue; (2)Receptacle Style = Straight; (3)Barrel Type = Open Barrel; (4)Wire/Cable Type = Regular Wire; (5)Insulation = No; (6)Insulation Support = Insulation Support; (7)Insulation Diameter (mm [in]) = 1.52-2.79 [.060-.110]; (8)Stud Diameter (mm [in]) = 4.17 [0.164]; (9)Stud Size = 8 [M4]; (10)Shape = RING-001; (11)Heavy Duty = No; (12)Material = Brass; (13)Finish = Tin.
Features
40698 features: (1)Terminal Shape = Ring Tongue; (2)Receptacle Style = Straight; (3)Barrel Type = Open Barrel; (4)Wire/Cable Type = Regular Wire; (5)Wire Range = 0.30-0.902 [22-18] mm [AWG].

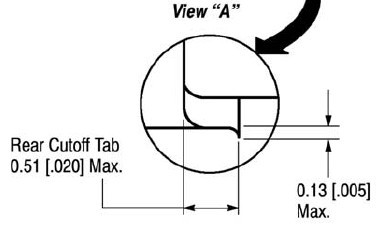

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 40698 |
TE Connectivity / AMP |
Terminals RING IS 20-18 SZ 8 .020TPBR |
