Product Summary
The 41274 is a FASTON Uninsulated Receptacle.
Parametrics
41274 absolute maximum ratings: (1)Product Type = Terminal; (2)Terminal Type = Receptacle; (3)Mating Area Interface Dimensions (mm [in]) = 6.35 x 0.81 [.250 x .032]; (4)Receptacle Style = Straight; (5)Insulation Support = Insulation Support; (6)Wire/Cable Type = Stranded; (7)Insulation Diameter (mm [in]) = 3.05-4.32 [.120-.170]; (8)Insertion Force = Normal; (9)Material = Brass; (10)Finish = Tin; (11)Crimp Type = F-Crimp.
Features
41274 features: (1)Terminal; (2)Terminal Type = Receptacle; (3)Mating Area Interface Dimensions = 6.35 x 0.81 mm; (4)Board Mount = No; (5)Receptacle Style = Straight.

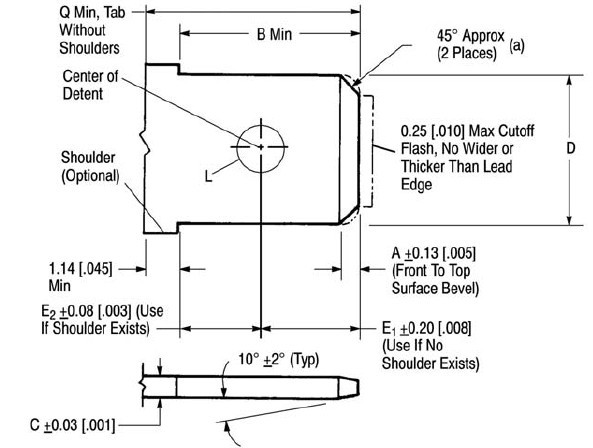

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 41274 |
TE Connectivity / AMP |
Terminals 250 FASTON RECP REEL 22000 |
Data Sheet |
|
|
||||||
|
41274-1 |
TE Connectivity / AMP |
Terminals FASTON RECEPTACLE |
Data Sheet |
|
|
||||||
