Product Summary
The 5749621-8 is an AMPLIMITE Insulation Displacement Connector (IDC).
Parametrics
5749621-8 absolute maximum ratings: (1)Shielded = Yes; (2)Product Type = Connector; (3)Wire/Cable Type = Round Jacketed Cable; (4)Wire Insulation Diameter (mm [in]) = 0.74-0.91 [0.029-0.036]; (5)Mating Connector Lock = Without; (6)Detent = Without; (7)Rails = Without; (8)Termination Cover = With; (9)Product Series = Series III; (10)Termination Method to Wire/Cable = IDC; (11)Termination Cover Type = Standard; (12)Termination Cover Method = Unassembled; (13)Color = Black; (14)Plug Shell Material = Steel.
Features
5749621-8 features: (1)Connector; (2)Connector Style = Plug; (3)80 Positions; (4)Wire/Cable Type = Round Jacketed Cable; (5)Applies To Cable.

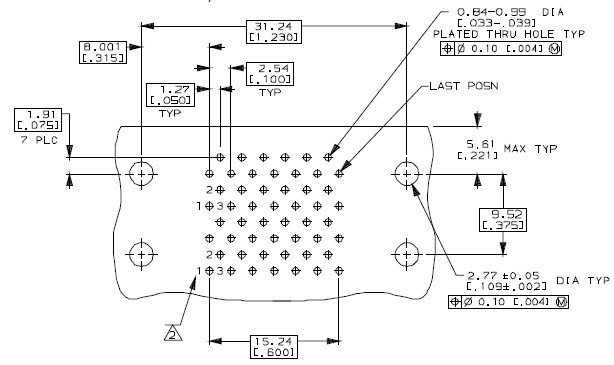

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 5749621-8 |
TE Connectivity / AMP |
D-Sub Standard Connectors 80 POS CABLE PLUG CONN/COVER KIT |
Data Sheet |
|
|
||||||||||||
