Product Summary

The 60249-2 is a FASTIN--FASTON Tab, Receptacle, and Housing.

Parametrics

60249-2 absolute maximum ratings: (1)Product Type = Contact; (2)Mating Area Interface Dimensions (mm [in]) = 6.35 x 0.81 [.250 x .032]; (3)Insulation Diameter (mm [in]) = (2) 3.30 [.130] Max, 4.06-5.33 [.160-.210]; (4)Receptacle Style = Straight; (5)Wire/Cable Type = Regular Wire; (6)Finish = Tin; (7)Material = Brass; (8)Insertion Force = Normal; (9)Insulation Support = With; (10)Crimp Type = F-Crimp; (11)FASTON = Yes; (12)For Housing Type = Single.

Features

60249-2 features: (1)Contact; (2)Contact Type = Receptacle; (3)Mating Area Interface Dimensions = 6.35 x 0.81 mm; (4)Wire Range = 1.25-3.002 [16-12] mm [AWG], (2) 1.25-1.40; [(2) 16] mm [AWG]; (5)Insulation Diameter = (2) 3.30 [.130] Max. mm [in], 4.06-5.33 [.160-.210] mm [in].

Diagrams

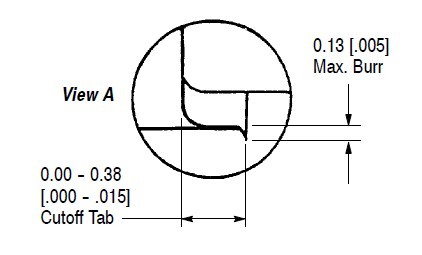

60249-2 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
60249-2
60249-2
TE Connectivity / AMP
Terminals .250 FF REC 16-12 18000
Data Sheet
0-1: $0.12
1-100: $0.10
100-500: $0.09
500-1000: $0.07
