Product Summary

The 63850-1 is a FASTON Uninsulated Receptacle.

Parametrics

63850-1 absolute maximum ratings: (1)Product Type = Terminal; (2)Terminal Type = Receptacle; (3)Mating Area Interface Dimensions (mm [in]) = 4.75 x 0.81 [.187 x .032]; (4)Receptacle Style = Straight; (5)Insulation Support = Insulation Support; (6)Wire/Cable Type = Stranded; (7)Insulation Diameter (mm [in]) = 2.29-3.30 [.090-.130]; (8)Insertion Force = Normal; (9)Material = Steel; (10)Finish = Nickel; (11)Crimp Type = F-Crimp.

Features

63850-1 features: (1)Terminal; (2)Terminal Type = Receptacle; (3)Mating Area Interface Dimensions = 4.75 x 0.81 mm; (4)Board Mount = No; (5)Receptacle Style = Straight.

Diagrams

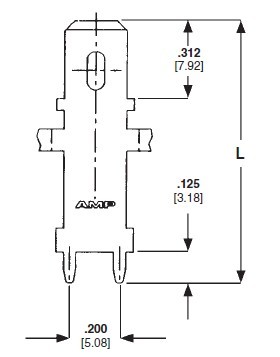

63850-1 block diagram
