Product Summary

The 6-103735-1 is an AMPMODU Interconnection System.

Parametrics

6-103735-1 absolute maximum ratings: (1)Contact - Rated Current (A): 3A; (2)Termination Resistance (mΩ): 15mΩ; (3)Insulation Resistance (MΩ): 5,000mΩ; (4)Dielectric Withstanding Voltage (V): 600V; (5)Operating Temperature: -65 to +105℃.

Features

6-103735-1 features: (1)Connector; (2)Header; (3)Connector Style = Plug; (4)Contact Type = Pin; (5)2.54 mm Centerline.

Diagrams

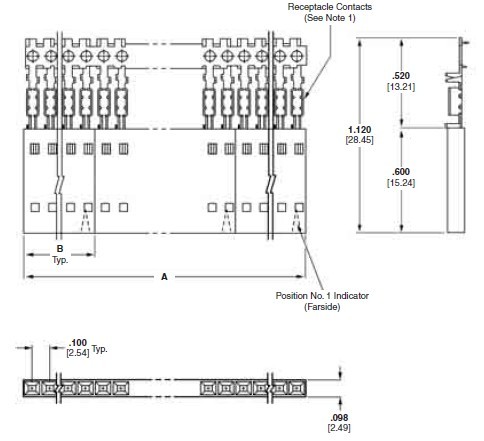

6-103735-1 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
6-103735-1
6-103735-1
TE Connectivity / AMP
Headers & Wire Housings LTCH HDR WO SWAGE 12
Data Sheet
0-1: $1.58
1-25: $1.43
25-50: $1.27
50-100: $1.13
