Product Summary

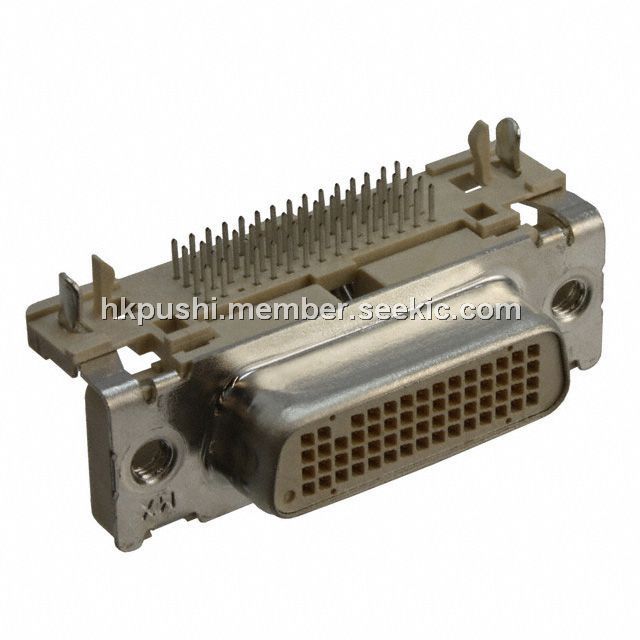

The 751341000 is a 1.27mm Pitch DMS-59® Receptacle.

Parametrics

751341000 absolute maximum ratings: (1)Current - Maximum per Contact: 1A; (2)Shielded: Yes; (3)Voltage - Maximum: 40V; (4)Temperature Range - Operating: -20℃ to +80℃.

Features

751341000 features: (1)Orientation: Right Angle; (2)PC Tail Length: 2.34mm; (3)PCB Retention: Yes; (4)PCB Thickness - Recommended: 1.60mm; (5)Packaging Type: Tube; (6)Panel Mount: Yes; (7)Pitch - Mating Interface: 1.27mm; (8)Plating min - Mating: 0.051μm; (9)Plating min - Termination: 2.540μm.

Diagrams

751341000 block diagram
