Product Summary

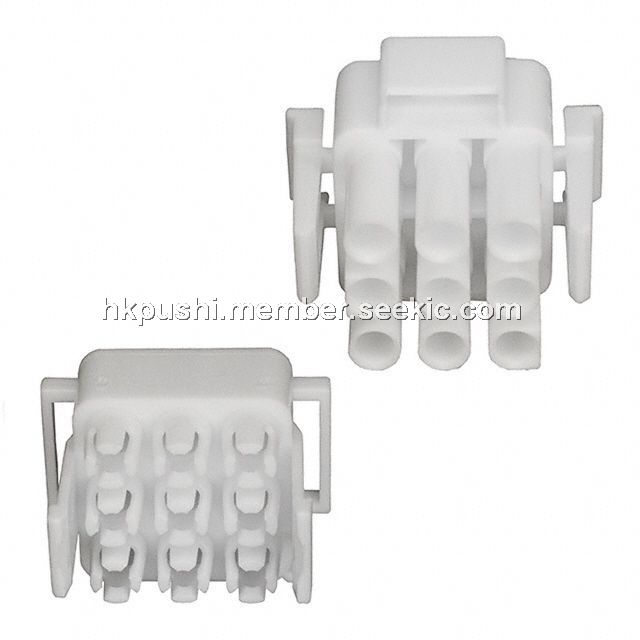

The 770021-1 is an AMP soft shell pin socket connector.

Parametrics

770021-1 absolute maximum ratings: (1)Voltage Rating: 250 VAC; (2)Current Rating: 13 A max; (3)Operating Temperature: -30℃ to +105℃; (4)Applicable Wire: 16 to 24 AWG; (5)Applicable PC Board Thickness: 1.6 mm.

Features

770021-1 features: (1)Connector; (2)Universal MATE-N-LOK II Product Line; (3)Housing; (4)Connector Style = Plug; (5)Contact Type = Pin or Socket.

Diagrams

770021-1 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
770021-1
770021-1
TE Connectivity / AMP
Power to the Board 9 MATRIX PLUG
Data Sheet
0-1: $0.81
1-50: $0.66
50-100: $0.63
100-250: $0.57
