Product Summary

The 770106-1 is an AMP soft shell pin socket connector.

Parametrics

770106-1 absolute maximum ratings: (1)Voltage Rating: 250 VAC; (2)Current Rating: 13 A max; (3)Operating Temperature: -30℃ to +105℃; (4)Applicable Wire: 16 to 24 AWG; (5)Applicable PC Board Thickness: 1.6 mm.

Features

770106-1 features: (1)Connector; (2)Connector Style = Plug; (3)Accepts Contact Gender = Pin or Socket; (4)Row-to-Row Spacing = 5.03 mm; (5)Matrix Contact Layout.

Diagrams

770106-1 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
770106-1
770106-1
TE Connectivity / AMP

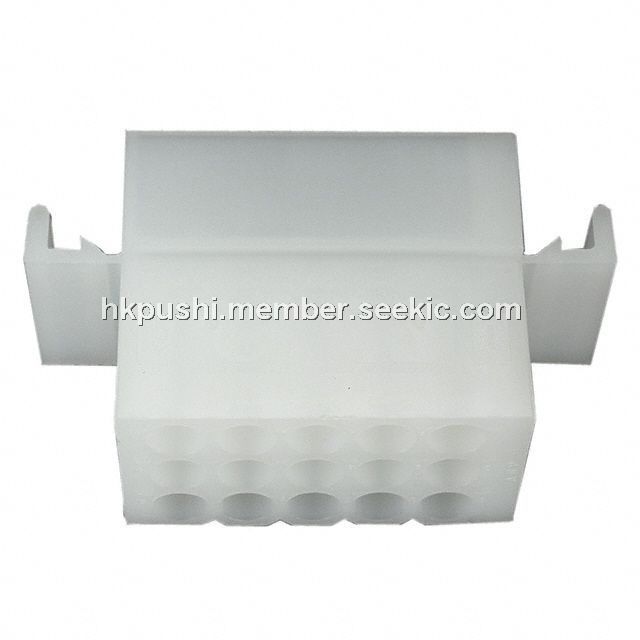

Pin & Socket Connectors PANEL MOUNT PLG 15P matrix
Data Sheet
0-1: $0.55
1-10: $0.47
10-100: $0.39
100-500: $0.30
