Product Summary

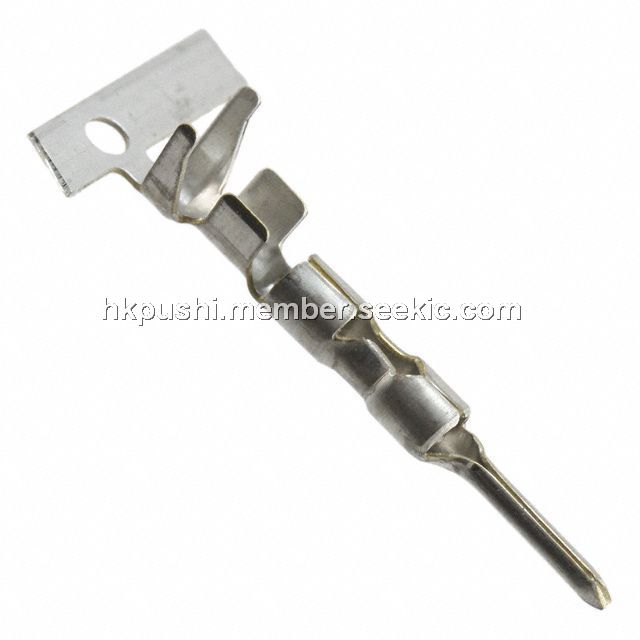

The 794220-1 is an AMP soft shell pin and socket connector.

Parametrics

794220-1 absolute maximum ratings: (1)Voltage rating: 600VAC; (2)Current Rating: 9.5A; (3)Temperature range: -40 to +90℃.

Features

794220-1 features: (1)Contact; (2)Contact Type = Pin; (3)Crimp Contact Termination Type; (4)Mini-Universal MATE-N-LOK 2; (5)Applies To Wire/Cable.

Diagrams

794220-1 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
794220-1
794220-1
TE Connectivity / AMP
Power to the Board PIN 22-18 BR/SN REEL
Data Sheet
0-1: $0.04
1-4500: $0.03
4500-9000: $0.03
9000-13500: $0.02
