Product Summary

The 8-188275-2 is a Micro-MaTch Board-Board & Ribbon-Board Connector.

Parametrics

8-188275-2 absolute maximum ratings: (1)Flammability rating: per UL 94 V-0; (2)Contact resistance: 10MΩ max; (3)Insulation resistance: 1,000MΩ min; (4)Nominal voltage: 230V; (5)Current rating: 1.5A; (6)Operating temperature range: -40℃ to +105℃.

Features

8-188275-2 features: (1)Connector; (2)Type of Connector = Female-On-Board; (3)12 Positions; (4)Applies To Printed Circuit Board; (5)Vertical Mount Angle.

Diagrams

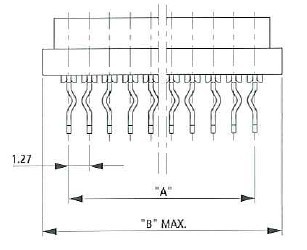

8-188275-2 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
8-188275-2
8-188275-2
TE Connectivity / AMP
Board to Board / Mezzanine Connectors 12 POS FOB SMT
Data Sheet
0-1: $1.22
1-25: $1.07
25-50: $1.02
50-100: $0.97
