Product Summary

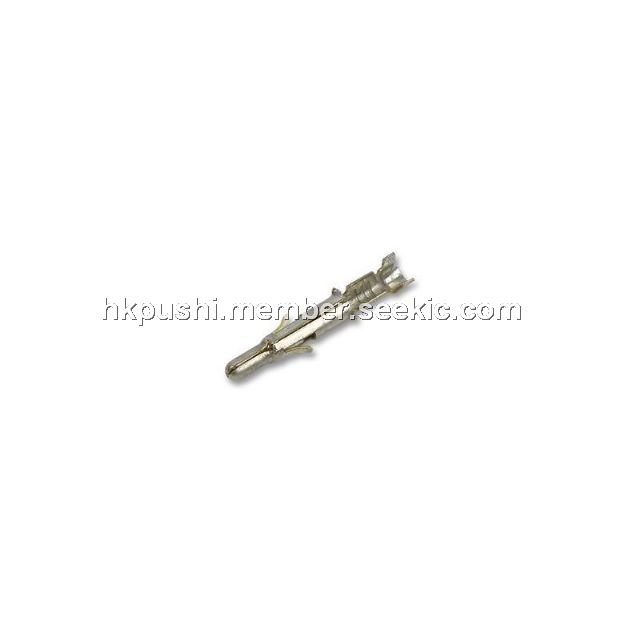

The 926883-1 is an AMP soft shell pin socket connector.

Parametrics

926883-1 absolute maximum ratings: (1)Voltage Rating: 600 VAC; (2)Current Rating: 19 to 36 A max; (3)Operating Temperature: -30℃ to +105℃; (4)Applicable Wire: 24-16 AWG; (5)Applicable PC Board Thickness: 1.6 mm.

Features

926883-1 features: (1)Contact; (2)Universal MATE-N-LOK Product Line; (3)Contact Type = Pin; (4)Applies To Wire/Cable; (5)Crimp Termination Method.

Diagrams

926883-1 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
926883-1
926883-1

TE Connectivity / AMP

Power to the Board PIN 20-14 AWG

Data Sheet

0-1: $0.13
1-100: $0.12
100-1000: $0.11
1000-2000: $0.10
2000-5000: $0.09
