Product Summary
The OMIH-SS-112DM is a relay. Its contact meterial is Ag alloy. The safety standard is conform with Japan product safety electrical appliance & materials law and foreign standard.
Parametrics
Performances: (1)operate time: 15ms max. at rated voltage; (2)release time: 8ms max. at rated voltage; (3)insulation resist/tance: between contacts and coil to contact 1000MΩ min. at 500VDC; (4)surge resistiveness: between coil to contact. 10kV.
Features
Features: (1)rated voltage: DC 12V; (2)coil resistance: 200Ω (±10%); (3)norminal operating power: about 0.72W; (4)max. allowable coil voltage: 130% of rated coil voltage (at 23℃); (5)rated contact current: 16A; (6)max. contact capacity: 3840VA; (7)min. applicable load: DC5V 100MA (reference).

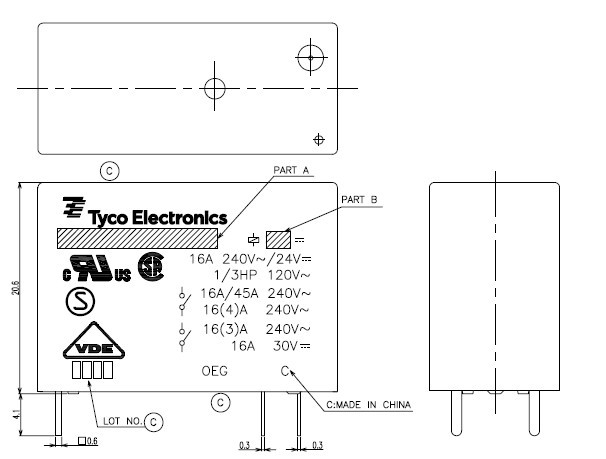

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 OMIH-SS-112DM,300 |
|
RELAY GEN PURPOSE SPST 16A 12V |
Data Sheet |
|
|
||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||
 |
OMIH-SH-105D,394 |
TE Connectivity / OEG |
General Purpose / Industrial Relays SPDT 16A 5VDC |
Data Sheet |
|
|
||||||||||||
|
OMIH-SH-105L,300 |
|
RELAY GEN PURPOSE SPDT 16A 5V |
Data Sheet |
Negotiable |
|
||||||||||||
|
OMIH-SH-105L,394 |
TE Connectivity / OEG |
General Purpose / Industrial Relays SPDT 16A 5VDC SENS |
Data Sheet |
|
|
||||||||||||
|
OMIH-SH-112D,394 |
TE Connectivity / OEG |
General Purpose / Industrial Relays SPDT 16A 12VDC |
Data Sheet |
|
|
||||||||||||
|
OMIH-SH-112DM,394 |
|
RELAY GEN PURPOSE SPST 16A 12V |
Data Sheet |
|
|
||||||||||||
|
OMIH-SH-112L,394 |
TE Connectivity / OEG |
General Purpose / Industrial Relays SPDT 16A 12VDC SENS |
Data Sheet |
|
|
||||||||||||
