Product Summary

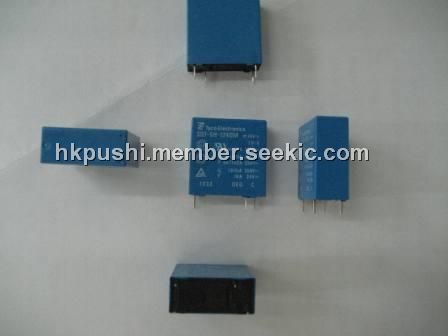

The SDT-SH-124DM is a industrial relay (general purpose).
Parametrics
Electrical characteristics: (1)Contact Current Rating (A) = 10; (2)Coil Resistance (Ω) = 1100; (3)Coil Power, Nominal (mW) = 540; (4)Actuating System = DC; (5)Input Voltage (VDC) = 24.
Features
Features: (1)Relay Style = PCB; (2)Contact Arrangement = 1 Form A, SPST-NO, 1 N/O; (3)Coil Magnetic System = Monostable; (4)Coil Suppression Diode = Without; (5)Coil Selection Criteria = Nominal Voltage; (6)Coil Latching = Without; (7)Status Indicator = None.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 SDT-SH-124DM,000 |
|
RELAY GEN PURPOSE SPST 10A 24V |
Data Sheet |
|
|
||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||
|
SDT-S-124LMR,000 |
|
RELAY GEN PURPOSE SPST 10A 24V |
Data Sheet |
|
|
||||||
|
SDT-SH-105DM,000 |
|
RELAY GEN PURPOSE SPST 10A 5V |
Data Sheet |
|
|
||||||
|
SDT-SH-112DM,000 |
|
RELAY GEN PURPOSE SPST 10A 12V |
Data Sheet |
|
|
||||||
|
SDT-SH-124DM,000 |
|
RELAY GEN PURPOSE SPST 10A 24V |
Data Sheet |
|
|
||||||
|
SDT-SS-105DM,000 |
|
RELAY GEN PURPOSE SPST 10A 5V |
Data Sheet |
|
|
||||||
|
SDT-SS-106DM,000 |
|
RELAY GEN PURPOSE SPST 10A 6V |
Data Sheet |
|
|
||||||
