Product Summary

The 10029364-001LF is a S-ATA comb receptacle.

Parametrics

10029364-001LF absolute maximum ratings: (1)Current rating: 1.5A at 30℃; (2)Resistance (Contact): 15 M-ohms max; (3)Resistance (Insulation): 1000 M-ohms min; (4)Voltage rating: 500V AC.

Features

10029364-001LF features: (1)Color (Housing): Black; (2)Material (Contact): Copper Alloy; (3)Material (Housing): Thermoplastic (UL 94 V-O); (4)Plating (Contact): 30u" Gold; (5)Temperature (Operating - range): 260℃ max. for 10 Seconds.

Diagrams

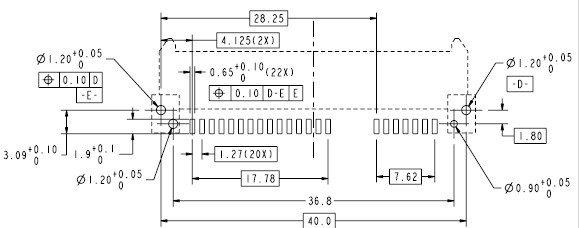

10029364-001LF block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
10029364-001LF
10029364-001LF
FCI
I/O Connectors COMB REC R/A SMT
Data Sheet
0-1: $1.82
1-25: $1.60
25-100: $1.50
100-250: $1.32
