Product Summary

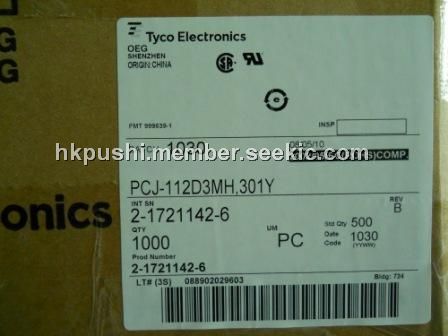

The PCJ-112D3MH,301Y(2-1721142-6) is a Miniature PCB Relay PCJ.

Parametrics

Absolute maximum ratings: (1)Contact configuration: 1 NO; (2)Contact set: single contact; (3)Type of interruption: micro disconnection; (4)Rated current: 3 A 5 A (WG-version); (5)Rated voltage / max.switching voltage AC: 250/400 VAC; (6)Maximum breaking capacity AC: 750 VA, 1250 VA; (7)Contact material: AgNi; (8)Mechanical endurance: 10x106 cycles; (9)Rated frequency of operation with / without load: 30 / 300 min-1.

Features

Features: (1)1 pole 3 / 5 A, 1 NO contact; (2)Sensitive coil 200 mW; (3)8 mm creepage / clearance; (4)Version for 105℃; (5)WG version: Product in accordance to IEC60335-1; (6)RoHS compliant (Directive 2002/95/EC) as per product date code 0424.

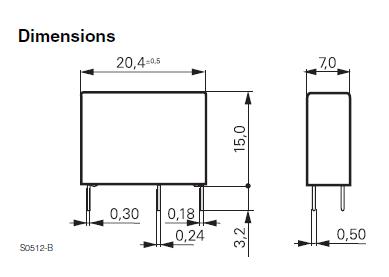

Diagrams

PCJ-105D3MH,301
PCJ-105D3MH,301
TE Connectivity / OEG
General Purpose / Industrial Relays SPST-NO 5A 5VDC SLD
Data Sheet
0-1: $1.14
1-10: $1.06
10-25: $1.00
25-50: $0.89
PCJ-112D3MH,000
PCJ-112D3MH,000
TE Connectivity / OEG
General Purpose / Industrial Relays Relays
Data Sheet
Negotiable
PCJ-112D3MH,301
PCJ-112D3MH,301
TE Connectivity / OEG
General Purpose / Industrial Relays SPST-NO 3A 12VDC SLD
Data Sheet
0-1: $1.58
1-10: $1.48
10-25: $1.39
25-50: $1.24
PCJ-124D3MH,000
PCJ-124D3MH,000
TE Connectivity / OEG
General Purpose / Industrial Relays Relays
Data Sheet
Negotiable
PCJ-124D3MH,301
PCJ-124D3MH,301
TE Connectivity / OEG
General Purpose / Industrial Relays SPST-NO 3A 24VDC SLD
Data Sheet
0-1: $1.03
1-10: $1.02
10-25: $0.97
25-50: $0.88
