Product Summary

The 102387-9 is an AMPMODU Header.

Parametrics

102387-9 absolute maximum ratings: (1)Contact - Rated Current: 3 A; (2)Voltage Rating: 250 VAC; (3)Termination Resistance: 12 MΩ ; (4)Insulation Resistance: 5,000 MΩ; (5)Dielectric Withstanding Voltage:750 V; (6)Operating Temperature: -65 to +105℃.

Features

102387-9 features: (1)Connector; (2)Housing; (3)Connector Style = Receptacle; (4)Contact Type = Socket; (5)2.54 mm Centerline.

Diagrams

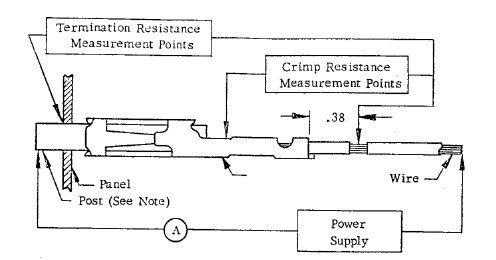

102387-9 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
102387-9
102387-9
TE Connectivity / AMP
Headers & Wire Housings CNTR PLRZD HG 40 DBL
Data Sheet
0-1: $3.26
1-10: $3.09
10-25: $2.95
25-50: $2.58
