Product Summary

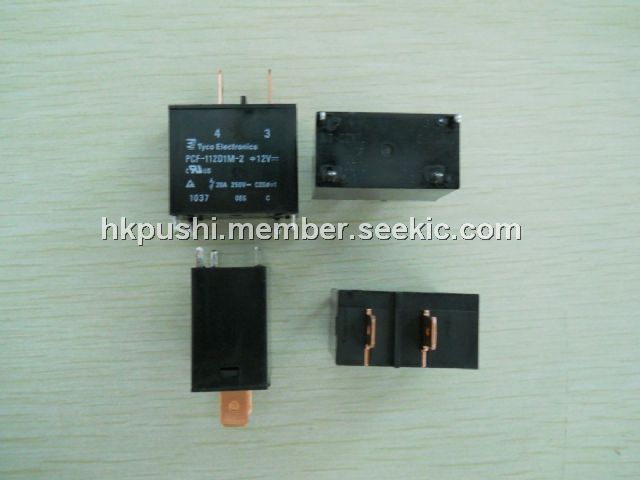

The PCF-112D1M-2,000 is a kind of 25A Miniature Power PC Board Relay. It is widely used in Appliances, HVAC, Office Machines.

Parametrics

PCF-112D1M-2,000 absolute maximum ratings: (1)Max. Switching Rate: 300 ops./min. (no load); 30 ops./min. (rated load); (2)Expected Mechanical Life: 10 million operations (no load); (3)Expected Electrical Life: 100,000 operations (rated load); (4)Minimum Load: 100mA @ 5VDC; (5)Initial Contact Resistance: 100 milliohms @ 1A, 6VDC; (6)Max. Switched Voltage: AC: 250V; (7)Max. Switched Current: 25A; (8)Max. Switched Power: 6,370VA.

Features

PCF-112D1M-2,000 features: (1)Meet UL 508, CSA, TUV requirements; (2)1 Form A contact arrangements; (3)Quick connect terminal type and PC board type; (4)Meet 5,000V dielectric voltage between coil and contacts; (5)Meet 10,000V surge voltage between coil and contacts (1.2 / 50μs).

Diagrams

PCF-112D1M-2,000 circuit diagram
