Product Summary

The 102548-3 is an AMPMODU Header.

Parametrics

102548-3 absolute maximum ratings: (1)Contact - Rated Current: 3 A; (2)Voltage Rating: 250 VAC; (3)Termination Resistance: 12 MΩ ; (4)Insulation Resistance: 5,000 MΩ; (5)Dielectric Withstanding Voltage:750 V; (6)Operating Temperature: -65 to +105℃.

Features

102548-3 features: (1)Contact; (2)Contact Type = Socket; (3)Crimp Termination Method to Wire/Cable; (4)Applies To Wire/Cable; (5)Wire Insulation Diameter = 1.55 mm.

Diagrams

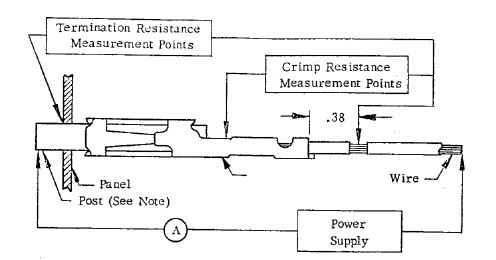

102548-3 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
102548-3
102548-3
TE Connectivity / AMP
Headers & Wire Housings INTERMEDIATE 26-22
Data Sheet
0-1: $0.38
1-100: $0.29
100-500: $0.28
500-1000: $0.25
