Product Summary

The 160645-1 is a Multiple Circuit Housing with Tab & Receptacle.

Parametrics

160645-1 absolute maximum ratings: (1)Centerline: 5.0 mm; (2)Housing Material: Polyamide, PA 6.6 and PA 6; (3)Standard Colour: Natural; (4)Voltage rating: 250 V; (5)Current rating: 16A; (6)Air and Creepage Distance: >3.2 mm; (7)Flammability Rating: UL 94 V-2; (8)Approvals: VDE, UL.

Features

160645-1 features: (1)Contact; (2)Contact Type = Tab; (3)Mating Area Interface Dimensions = 6.35 x 0.81 mm; (4)Wire Range = 0.30-0.902 [22-18] mm [AWG]; (5)Insulation Diameter = 2.16-3.18 [.085-.125] mm [in].

Diagrams

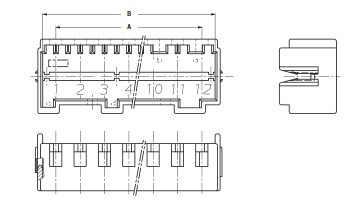

160645-1 block diagram
