Product Summary

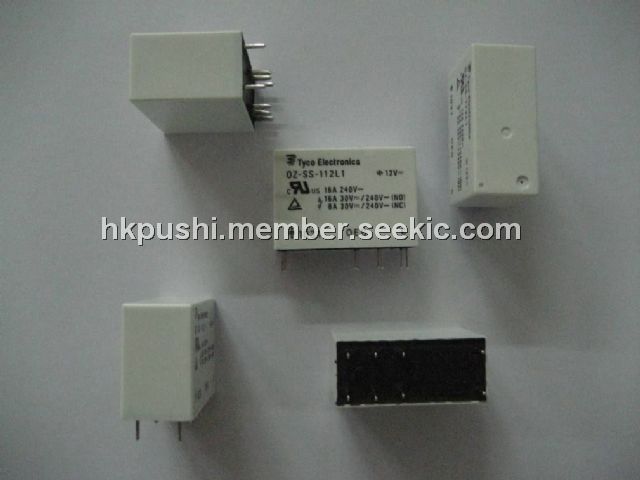

The 1649399-4 is a General Purpose Relay.

Parametrics

1649399-4 absolute maximum ratings: (1)Voltage rating: 12V; (2)Coil resi9stance: 270Ω (±10%); (3)Norminal operating power: about 0.54W; (4)Current rating: 8 to 16A; (5)Temperature rating: -30 to +70℃.

Features

1649399-4 features: (1)CONTACT RESISTANCE 100Ω Max. (at initial stage) voltage drop test method 6VDC 1A; (2)OPERATE VOLTAGE 9.6VDC Max of rated voltage (at 23℃); (3)RELEASE VOLTAGE 0.6VDC Min. of rated voltage (at 23℃); (4)OPERATE TIME 20ms Max. at rated voltage; (5)RELEASE TIME 10ms Max. at rated voltage.

Diagrams

1649399-4 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
1649399-4
1649399-4
TE Connectivity / OEG
General Purpose / Industrial Relays OZ-SS-112L1 200
Data Sheet
0-675: $1.49
