Product Summary

The 170032-5 is a 250 Series Housing Lance Connector.

Parametrics

170032-5 absolute maximum ratings: (1)Voltage rating: 100VAC; (2)Current rating: 5A; (3)Temperature rating: -30℃ to +105℃.

Features

170032-5 features: (1)Contact; (2)Receptacle; (3)Wire Range = 0.50-2.002 [20-14] mm [AWG]; (4)Wire Insulation Diameter = 2.16 - 3.43 mm; (5)RoHS compliant, ELV compliant.

Diagrams

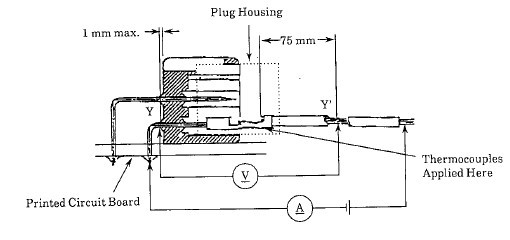

170032-5 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
170032-5
170032-5
TE Connectivity / AMP
Automotive Connectors Crimp Term 14-20AWG
Data Sheet
0-1: $0.05
1-6000: $0.03
6000-12000: $0.02
