Product Summary

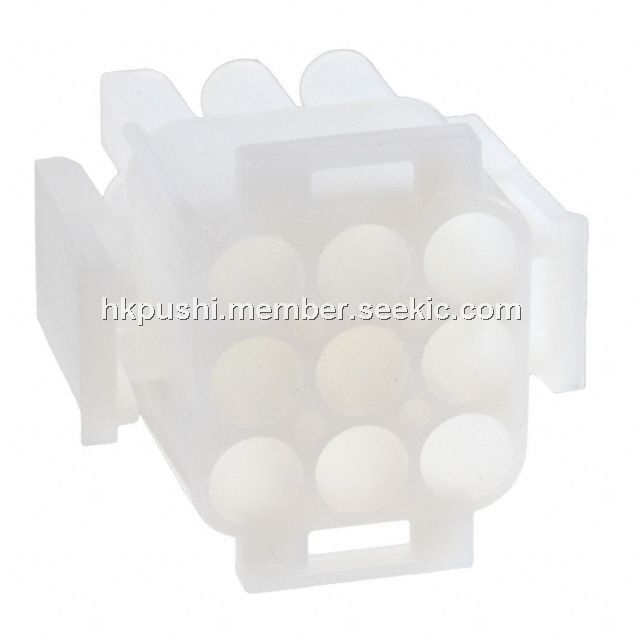

The 1-480709-0 is an AMP soft shell pin socket connector.
Parametrics
1-480709-0 absolute maximum ratings: (1)Voltage Rating: 600 VAC; (2)Current Rating: 19 to 36 A max; (3)Operating Temperature: -30℃ to +105℃; (4)Applicable Wire: 24-16 AWG; (5)Applicable PC Board Thickness: 1.6 mm.
Features
1-480709-0 features: (1)Connector; (2)Universal MATE-N-LOK Product Line; (3)Housing; (4)Connector Style = Receptacle; (5)Contact Type = Pin or Socket.

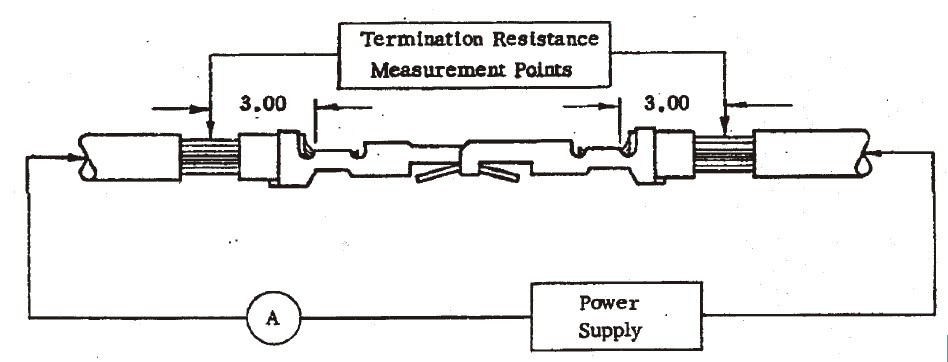

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 1-480709-0 |
TE Connectivity / AMP |
Pin & Socket Connectors CAP HOUSE 12 POS |
Data Sheet |
|
|
||||||||||||
