Product Summary
The 1-794617-4 is a soft shell pin and socket connector. The applications of the 1-794617-4 include Household appliances, Lighting, Factory automation, Data storage, Gaming, Vending, Garage door openers, Security systems.
Parametrics
1-794617-4 absolute maximum ratings: (1)Voltage (VAC): 250V; (2)Current Rating (A): 5A; (3)UL Flammability Rating: UL 94V-0.
Features
1-794617-4 features: (1)Wire-to-wire and wire-to-board pin and receptacle connector system; (2)Contacts are on 3 mm centerline spacing and are available in strip form or loose piece; (3)Panel mount or free-hanging versions; (4)Dual beam receptacle contact design for improved reliability; (5)PCB mount pin header assemblies available in both vertical and right angle styles and surface mount or through hole versions; (6)Available in low profile design (<4.7 mm); (7)Discrete wire interconnect available in 2-12 position single row and 2-24 position dual row; (8)Housings available to accommodate 18 AWG wire in select circuits up to 6 position; (9)UL, CSA & VDE approved.

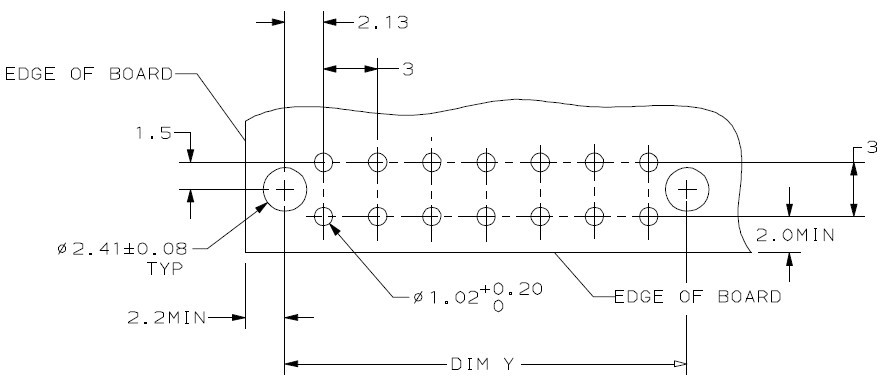

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

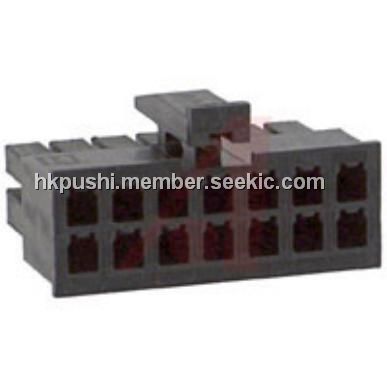

 1-794617-4 |
TE Connectivity / AMP |
Pin & Socket Connectors RECPT DUAL ROW 14P |
Data Sheet |
|
|
||||||||||||
