Product Summary

The 2-6447232-3 is a SUPER SEAL CONNECTOR.

Parametrics

2-6447232-3 absolute maximum ratings: (1)Current: Refer to the table below; (2)Voltage: 250V (AC,DC); (3)Temperature: -40 to +125℃; (4)Wire Conductor: 0.5 to 1.25m㎡; (5)Insulation Cover: φ1.6 to φ2.2.

Features

2-6447232-3 features: (1)JIS D0203: Wet-Proof & Water-Proof Test Method Automobile Parts; JIS Z8901: Dusts and Aerosols for Industrial Testing; (2)MIL (Military Specifications and Standards), MIL 202: Test Method for Electronic and Electronical Parts; (3)Qualitification Test Report: 501-78143.

Diagrams

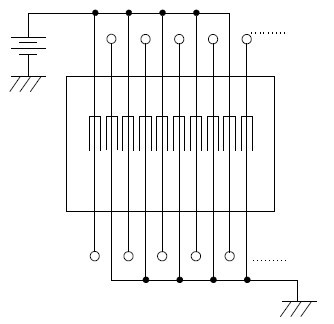

2-6447232-3 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
2-6447232-3
2-6447232-3
TE Connectivity
Automotive Connectors SUPER SEAL 34POS CAP ASY V AU
Data Sheet
0-996: $7.90
