Product Summary

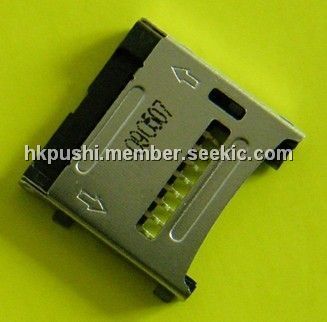

The 472192001 is a 1.10mm Pitch microSD Card Connector.

Parametrics

472192001 absolute maximum ratings: (1)Current - Maximum per Contact: 0.5A; (2)Shielded: Yes; (3)Voltage - Maximum: 100V DC; (4)Temperature Range - Operating: -20℃ to +85℃.

Features

472192001 features: (1)PCB Mounting Side: Normal; (2)PCB Retention: Yes; (3)Packaging Type: Embossed Tape on Reel; (4)Pitch - Mating Interface: 1.09mm; (5)Pitch - Termination Interface: 1.09mm; (6)Plating min - Mating: 0.508μm.

Diagrams

472192001 block diagram
