Product Summary

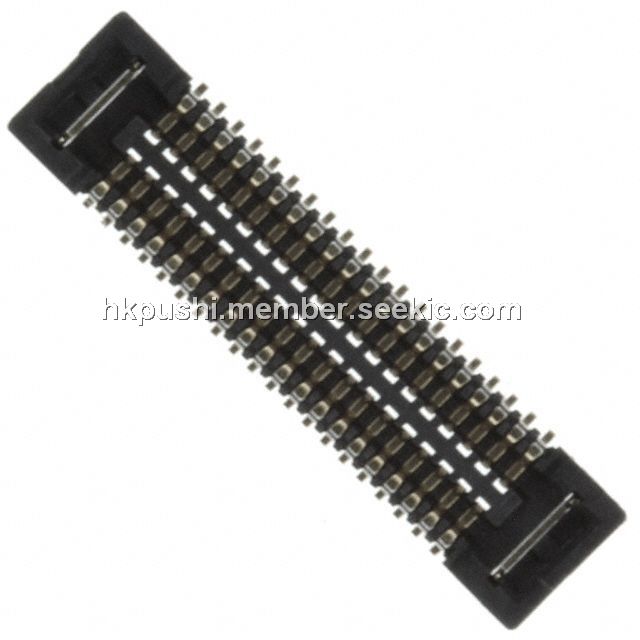

The 5015941011 is a 0.40mm Pitch SlimStack Board-to-Board Receptacle.
Parametrics
5015941011 absolute maximum ratings: (1)Current - Maximum per Contact: 0.3A; (2)Voltage - Maximum: 50V AC (RMS)/DC; (3)Temperature Range - Operating: -25℃ to +85℃.
Features
5015941011 features: (1)Material - Metal: Phosphor Bronze; (2)Material - Plating: Mating Gold; (3)Net Weight: 8.691/mg; (4)Number of Rows: 2; (5)Orientation: Vertical; (6)PCB Locator: No; (7)PCB Retention: Yes; (8)Packaging Type: Embossed Tape on Reel; (9)Pitch - Mating Interface: 0.40mm.

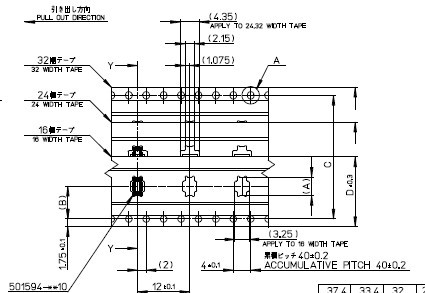

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 5015941011 |
|
CONN PLUG 10POS VERT .4MM SL SMD |
Data Sheet |
|
|
||||||||||||||||||||
