Product Summary

The 5207953-3 is an AMPLIMITE Subminiature D Connector.

Parametrics

5207953-3 absolute maximum ratings: (1)Accessory Type = Female Screw Locks; (2)Thread Size = 4-40; (3)Screw Length (mm [in]) = 11.13 [0.438]; (4)Screw Material = Cold Rolled Steel; (5)For Use With = All Plastic Right-Angle Connectors (HD).

Features

5207953-3 features: (1)Accessory Type = Female Screw Locks; (2)Thread Size = 4-40; (3)Thread Length = 6.35 mm; (4)Screw Length = 11.13 mm; (5)Screwlock Style = Screwlock Only.

Diagrams

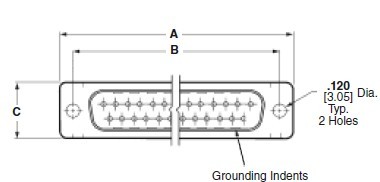

5207953-3 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
5207953-3
5207953-3
TE Connectivity / AMP
D-Sub Tools & Hardware DSUB ACC: FEMALE SCREWLOCK
Data Sheet
0-1: $0.16
1-25: $0.14
25-100: $0.13
100-500: $0.10
