Product Summary
The 5-103672-4 is an AMPMODU Header.
Parametrics
5-103672-4 absolute maximum ratings: (1)Voltage Rating: 250 VAC; (2)Current Rating: 3.0 Amperes (max.) for single contact; 2.0 Amperes (max.) per contact; (3)Operating Temperature Range: -65℃ to +125℃; (4)Dielectric Withstanding Voltage: 750 VAC; (5)Termination Resistance: 12 milliohms (max.); (6)Insulation Resistance: 5000 megohms (min.); (7)Mating Force: 9.0 oz. [2.50N] (max.) per contact; (8)Unmating Force: 1.5 oz. [0.42N] (min.) per contact; (9)Durability: Tested to 200 cycles (min.) for .000030 [0.00076] gold plated contacts.
Features
5-103672-4 features: (1)Connector; (2)Housing; (3)Connector Style = Receptacle; (4)Contact Type = pin; (5)2.54 mm Centerline.

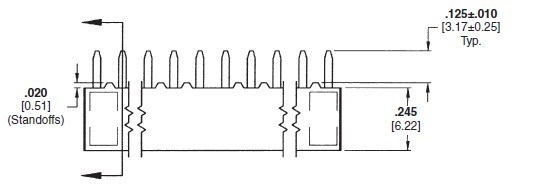

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 5-103672-4 |
TE Connectivity |
Headers & Wire Housings LATCHING HDR SHRD 5P with hold down |
Data Sheet |
|
|
||||||||||||
