Product Summary
The 63475-2 is a FASTON Uninsulated Receptacle.
Parametrics
63475-2 absolute maximum ratings: (1)Product Type = Terminal; (2)Terminal Type = Receptacle; (3)Mating Area Interface Dimensions (mm [in]) = 4.75 x 0.51 [.187 x .020]; (4)Receptacle Style = Straight; (5)Insulation Support = Insulation Support; (6)Wire/Cable Type = Stranded; (7)Insulation Diameter (mm [in]) = 2.29-3.30 [.090-.130]; (8)Insertion Force = Low; (9)Material = Brass; (10)Finish = Tin; (11)Crimp Type = F-Crimp.
Features
63475-2 features: (1)Terminal; (2)Terminal Type = Receptacle; (3)Mating Area Interface Dimensions = 4.75 x 0.51 mm; (4)Board Mount = No; (5)Receptacle Style = Straight.

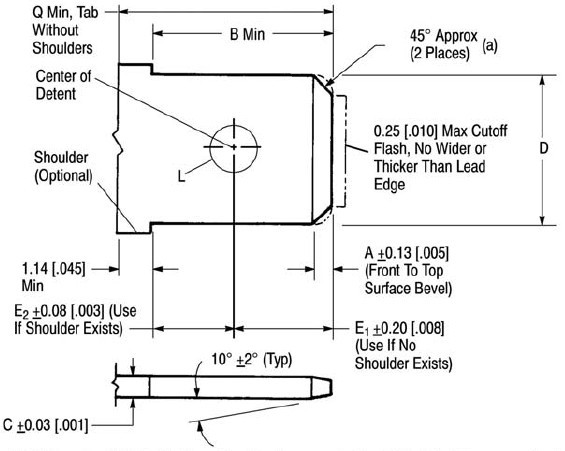

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 63475-2 |
TE Connectivity / AMP |
Terminals 20-16 AWG .187 RCPT 40000 |
Data Sheet |
|
|
||||||||||
