Product Summary

The 640905-1 is a Pre- Insulated Diamond Grip (PIDG).

Parametrics

640905-1 absolute maximum ratings: (1)Voltage (VAC): 300V; (2)Wire/Cable Size (CMA): 2,050 - 5,180.

Features

640905-1 features: (1)Proprietary Name = PIDG FASTON; (2)Receptacle Style = Straight; (3)Wire Range = 1.25-2.002 [16-14] mm [AWG] ; (4)Mating Area Interface Dimensions = 6.35 x 0.81 mm; (5)Insulation Diameter = 4.32 [.170] Max. mm [in].

Diagrams

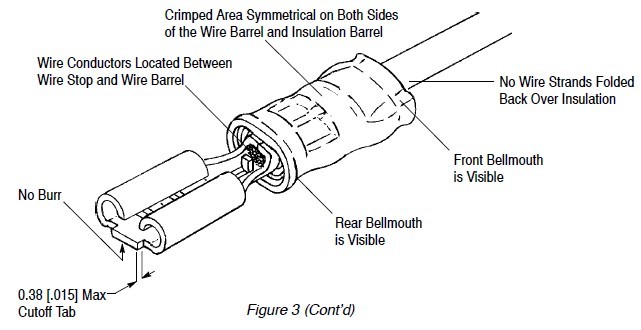

640905-1 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
640905-1
640905-1
TE Connectivity / AMP
Terminals PIDG RECPT 16-14 AWG blue
Data Sheet
0-1: $0.20
1-100: $0.19
100-500: $0.18
500-1000: $0.13
