Product Summary

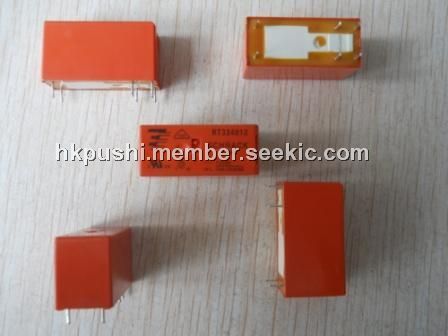

The RTD34012F(3-1419108-6) is a power PCB relay. It is widely used in boiler control, timers, garage door control, POS automation and interface modules.

Parametrics

Absolute maximum ratings: (1)Dielectric strength: coil-contact circuit: 5000 Vrms; open contact circuit: 1000 Vrms; (2)Clearance / creepage coil-contact circuit: ≥10/10mm; (3)Material group of insulation parts: ≥IIIa; (4)Tracking index of relay base: PTI 250V.

Features

Features: (1)1 pole 12 / 16 A, 1 CO or 1 NO contact; (2)DC- or AC-coil; (3)Sensitive coil 400 mW; (4)5 kV / 10 mm coil-contact, reinforced insulation; (5)Ambient temperature 85℃ (DC-coil); (6)WG version: Product in accordance to IEC60335-1; (7)RoHS compliant (Directive 2002/95/EC) as per product date code 0413.

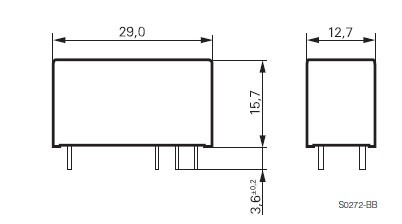

Diagrams

RTD34005
RTD34005
TE Connectivity / Schrack
General Purpose / Industrial Relays SPST-NO 16A 5VDC
Data Sheet
0-1190: $0.81
RTD34005F
RTD34005F
TE Connectivity / P&B
General Purpose / Industrial Relays SPST-NO 16A 5VDC
Data Sheet
0-4050: $1.20
RTD34012
RTD34012
TE Connectivity / Schrack
General Purpose / Industrial Relays 16 AMP 12VDC SPST NO PCB RELAY
Data Sheet
0-1: $1.24
1-25: $1.08
25-50: $0.98
50-100: $0.81
RTD34012F
RTD34012F
TE Connectivity / P&B
General Purpose / Industrial Relays SPST-NO 16 A 12 VDC
Data Sheet
0-1: $2.27
1-10: $1.99
10-25: $1.88
25-50: $1.80
RTD34024
RTD34024
TE Connectivity / Schrack
General Purpose / Industrial Relays SPST-NO 16A 24VDC Power PCB Relay
Data Sheet
0-1: $1.32
1-25: $1.19
25-50: $1.10
50-100: $0.91
RTD34024F
RTD34024F
TE Connectivity / P&B
General Purpose / Industrial Relays SPST-NO 16 A 24 VDC
Data Sheet
0-1: $2.27
1-10: $2.11
10-25: $1.98
25-50: $1.79
