Product Summary

The 641294-1 is an AMP soft shell pin and socket connector.

Parametrics

641294-1 absolute maximum ratings: (1)Voltage rating: 250 Vac; (2)Current rating: 9.43A; (3)Temperature rating: -55 to +85℃.

Features

641294-1 features: (1)Wire-to-Board, Wire-to-Board / Wire-to-Wire, Wire-to-Wire; (2)Contact; (3)Applies To Wire/Cable; (4)Wire/Cable Size = 18 - 26 AWG; (5)Wire/Cable Size = .12 - .8 mm.

Diagrams

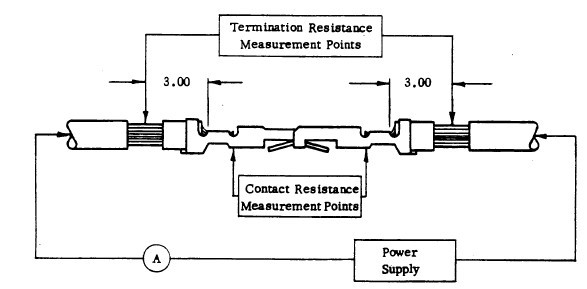

641294-1 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
641294-1
641294-1
TE Connectivity / AMP
Pin & Socket Connectors 26-18G SOCKET TERM REEL
Data Sheet
0-1: $0.09
1-100: $0.06
100-500: $0.06
500-1000: $0.05
