Product Summary
The 66331-7 is a M series pin and socket connector.
Parametrics
66331-7 absolute maximum ratings: (1)Temperature Rating: Phenolic Housings, -55℃ to +150℃; Diallyl Phthalate Housings, -65℃ to +125℃; Polyester, -55℃ to +130℃; (2)Flammability Ratings: UL94V-0 Dielectric Withstanding; (3)Voltage (at sea level): Type II Contacts: 1500 VAC, RMS; Type III+ Contacts: 900 VAC, RMS; (4)Durability (Mating/Unmating): Types II and III+ Contacts, Gold Plated: 500 cycles; Types II and III+ Contacts, Tin Plated: 50 cycles; Type I Contacts, Gold Plated: 100 cycles.
Features
66331-7 features: (1)Contact Type = Socket; (2)Contact Classification = Signal; (3)Type III+ Series; (4)Gold (15) Contact Plating, Mating Area, Material; (5)Wire Range = 0.20-0.602 [24-20] mm [AWG].

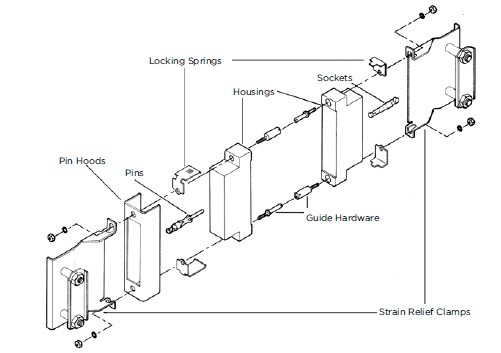

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 66331-7 |
TE Connectivity / AMP |
Pin & Socket Connectors III+ SKT24-2015 12000 |
Data Sheet |
|
|
||||||||||
