Product Summary

The 66504-3 is a Standard Cable Connector.

Parametrics

66504-3 absolute maximum ratings: (1)Voltage rating: 250 volts AC; (2)Current rating: 1.2 to 3.1A; (3)Temperature rating: -55 to 105℃.

Features

66504-3 features: (1)Contact; (2)Product Series = HDP-20 (Crimp Snap); (3)Contact Type = Socket; (4)Phosphor Bronze Contact Base Material; (5)Crimp Termination Method to Wire/Cable.

Diagrams

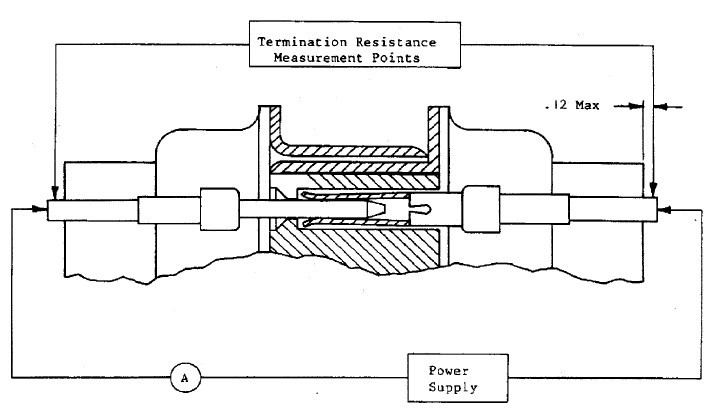

66504-3 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
66504-3
66504-3
TE Connectivity / AMP
D-Sub Contacts CRIMP SOCKET 24-20 REEL
Data Sheet
0-1: $0.14
1-100: $0.12
100-500: $0.10
500-1000: $0.08
