Product Summary
The 6-1393211-2 is a general purpose relay. The applications of the 6-1393211-2 include HVAC, residential/commercial appliances, industrial controls.
Parametrics
6-1393211-2 absolute maximum ratings: (1)Contact arrangement: 2 form A (NO), 2 form C (CO); (2)Rated voltage: 277VAC; (3)Max. switching voltage: 600VAC; (4)Rated current: 30A NO; 3A NC; (5)Limiting continuous current: 30A NO; 3A NC; (6)Limiting making current: 30A NO; 3A NC; (7)Limiting breaking current; 30A NO; 3A NC; (8)Contact material: AgSnOInO, AgCdO; (9)Min. recommended contact load: 500mA (NO)/ 100mA (NC), 12VAC; (10)Frequency of operation, with load: 360hr; (11)Operate/release time max., including bounce: 15/15ms.
Features
6-1393211-2 features: (1)30A, 2 form A (NO) and 2 form C (CO) switching capability; (2)Designed to control compressor loads to 3.5 tons, 110LRA/25.3FLA; (3)Meets requirements of UL 508 and UL 873 spacings - 8mm through air, 9.5mm over surface; (4)Meets requirements of VDE 8mm spacing, 4kV dielectric coil-to-contact; (5)Meets requirements of UL Class F construction; (6)UL approved for 600VAC switching (1.5HP); (7)New screw terminal version (consult factory for availability, ratings).

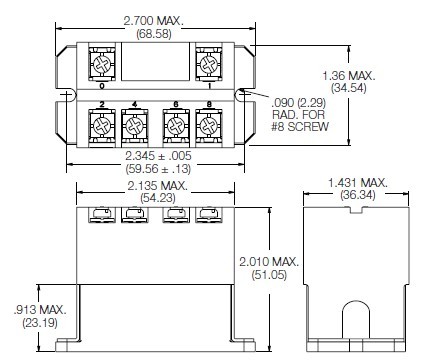

Diagrams
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |

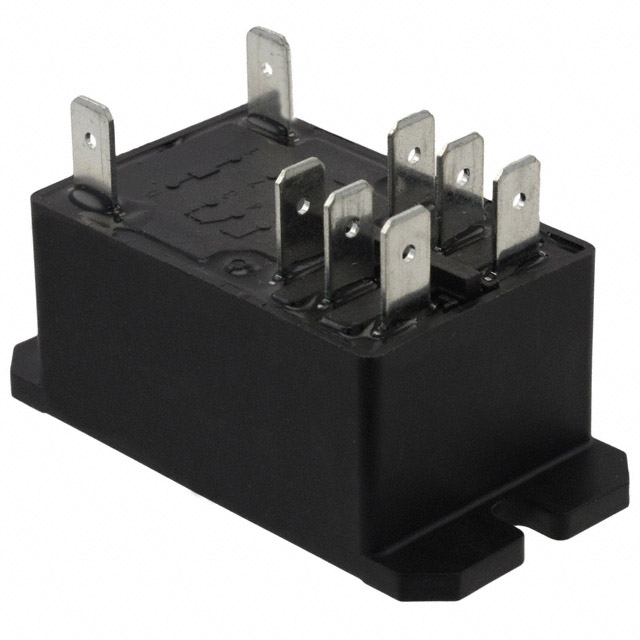

![]() 6-1393211-2 |
![]() |
![]() RELAY GEN PURPOSE DPST 30A 240V |
![]() Data Sheet |
![]()
|
|
||||||||||||||||||
