Product Summary

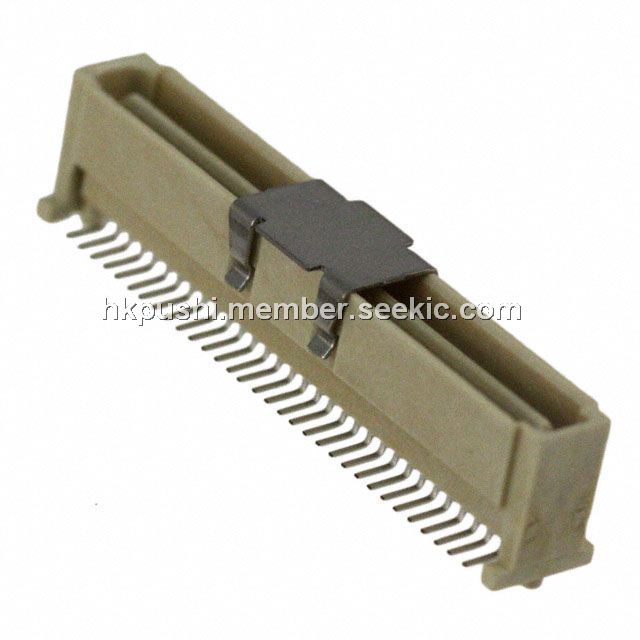

The 714362464 is a PCB Header.

Parametrics

714362464 absolute maximum ratings: (1)Current - Maximum per Contact: 1A; (2)Voltage - Maximum: 100V; (3)Temperature Range - Operating: -55℃ to +85℃.

Features

714362464 features: (1)Orientation: Vertical; (2)PCB Locator: Yes; (3)PCB Retention: None; (4)PCB Thickness - Recommended: 1.00mm; (5)Packaging Type: Embossed Tape on Reel; (6)Pitch - Mating Interface: 1.00mm; (7)Plating min - Mating: 0.762μm; (8)Plating min - Termination: 1.905μm.

Diagrams

714362464 block diagram
