Product Summary
71743-4040 is a 1.27mm Pitch EBBI 50D Receptacle.
Parametrics
71743-4040 absolute maximum ratings: (1)Current - Maximum per Contact: 1A; (2)Voltage - Maximum: 30V; (3)Temperature Range - Operating: -40℃ to +105℃.
Features
71743-4040 features: (1)Circuits (Loaded): 40; (2)Circuits (maximum): 40; (3)Color - Resin: Black; (4)Durability (mating cycles max): 500; (5)Flammability: 94V-0; (6)Glow-Wire Compliant: No; (7)Guide to Mating Part: Yes; (8)Lock to Mating Part: None; (9)Material - Metal: Phosphor Bronze; (10)Material - Plating Mating: Gold; (11)Material - Plating Termination: Tin; (12)Material - Resin: High Temperature Thermoplastic.

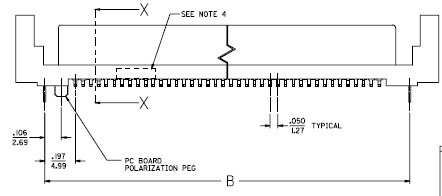

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 71743-4040 |
Molex |
Board to Board / Mezzanine Connectors 1.27mm EBBI SMT Vert RecAssy SCA-2 40Ckt |
Data Sheet |
Negotiable |
|
||||||||||||
